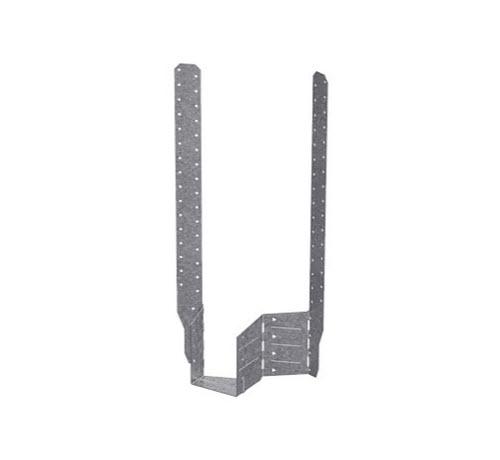

The THASR/L is designed to support trusses and beams. This versatile U-shaped hanger combines the height adjustability of the THA with field adjustability. These key features provide maximum flexibility for the installer. Shipped at 22 1/2° right or left, the THASR/L hangers can be field-skewed from 22 1/2° to 75°.

Features

• Eliminates the need for special orders
• The THASR/L29, 29-2 and 422 are replacing the former 218, 218-2 and 418 versions
• The THASR/L single- and two-ply versions have straps 9" tall; the 4x version has 22" straps to fit more parallel-chord truss applications
• The versions have only one acute side bend line to ease design and installation
• Joist fasteners are only required from one side for skews greater than 22 1/2°
• Rated for installation with either nails or Strong-Drive^® SD Connector screws
