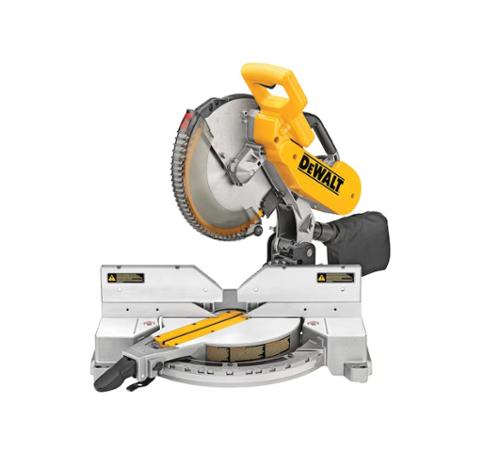

The DW716 12" Double-Bevel Compound Miter Saw has a 15 amp motor for extended power and durability. Features a stainless steel miter detent plate and cam miter lock that provides repeatable accuracy and durability with easy adjustments. Tall sliding fences support 6-5/8" of nested crown and 6-1/2" of base molding vertically. Lightweight design, head lock-down pin, and built-in carry handle for portability.

Features

• 15 amp, 3,800 rpm motor delivers extended power and durability
• Adjustable stainless steel miter detent plate with 11 positive stops Improves productivity and ensures cutting accuracy
• Precise miter system and machined-base fence support optimize cutting accuracy
• Tall sliding fences support crown molding up to 6-5/8" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts
• Innovative gearbox and belt-drive design increases vertical cutting capacity
• Double bevel design allows saw to bevel left and right 0° - 48° with positive stops at 0°, 33.9°, 45°, and 48° both left and right allowing user to flip the saw not the material
• Exclusive back-fence design cuts dimensional lumber 2" x 10" at 90° and 2" x 8" at 45°
• 0-50° left and right miter capacity for greater versatility
• Lightweight (44 lbs.), head lock-down pin, and built-in carrying handle for increased portability
• Cam lock miter handle with detent override deliver quick and accurate miter angles

Specifications

• Arbor Size: 1 in
• Bevel Capacity: 48 °
• Blade Diameter: 12 in
• Blade Diameter: 305 mm
• Color: Yellow
• Cutter/Saw Wheel Diameter: 305 mm
• Cutter/Saw Wheel Diameter: 12 in
• Disc Diameter: 12 in
• Disc Diameter: 305 mm
• No Load Speed (RPM): 3600
• Number of Pieces: 3
• Power Source: Corded
• Product Height: 16.9 in
• Product Length: 24.5 in
• Product Weight: 44 lbs
• Product Width: 17.95 in
