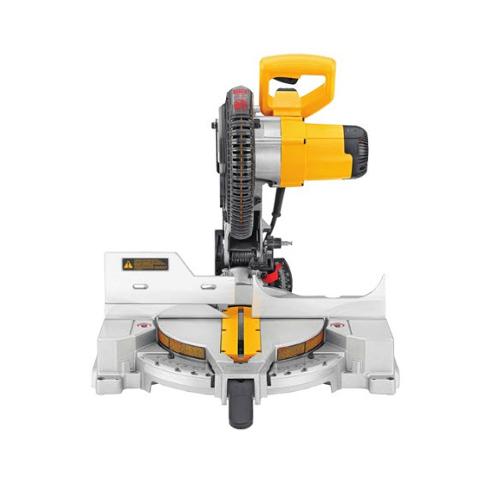

The DW713 10" Compound Miter Saw has a 15 amp motor delivering 5,000 rpm, extended power and durability. Features a stainless steel miter detent plate and cam miter lock that provides repeatable accuracy and durability with easy adjustments. Tall sliding fences support 4-1/2" of crown molding vertically nested. Lightweight design and built-in carry handle for portability.

Features

• 15 Amp, 5,000 rpm motor delivers extended power and durability
• Stainless steel detent plate with 11 positive stops provides repeatable accuracy and jobsite durability
• Tall sliding fences support crown molding vertically 4-1/2" and easily slide out of the way for bevel cuts
• Machined-base fence support maintains fence perpendicularity with blade for cutting accuracy
• Cam miter lock for quick and accurate miter table positioning
• Miter detent override for fine adjustment and precise miter angles
• 0-50° Left and right miter capacity for greater versatility
• Bevels 3°-48° for increased cut capacity
• Lightweight (35 lbs) with built-in carrying handle for increased portability

Specifications

• 45° Bevel cut capacity (dimensional lumber): 2x14
• 45° Miter cut capacity (max height): 2x4
• 45° Miter cut capacity (max width): 2x4
• 90° Cross-cut capacity (dimensional lumber): 4x4
• 90° Cross-cut capacity (max width): 2x6
• Amps: 15
• Arbor size: 5/8"
• Blade diameter: 10"
• Horizontal capacity: Baseboard lying flat: 6"
• Horizontal capacity: Crown molding lying flat: 5-1/4"
• No load speed: 5,000 RPM
• Power tool type: Corded
• Weight: 35 lbs
• Vertical capacity: Baseboard against fence: 3-1/2"
• Vertical capacity: Crown molding vertically nested: 4-1/2"

Includes

• Blade Wrench
• Carbide Blade
• Users Guide
