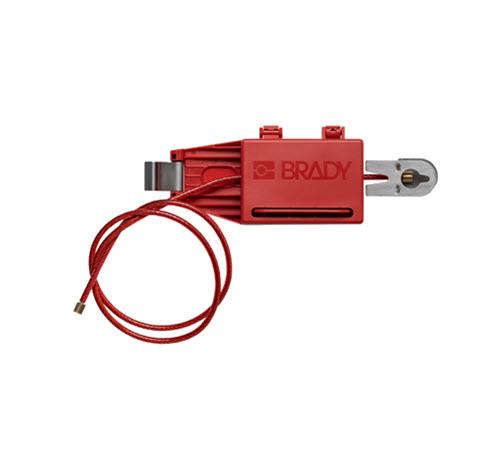

Get a more efficient lockout process with the Panel Lockout. It effectively locks out all breakers – at once – and easily fits a wide range of panel doors

Features

• One-piece design is easy to install and remove
• Multiple attachment options for electrical panel doors
• Compact and lightweight to fit in a lockout bag or toolbox
• The 3.2 (1m) cable fits a wide range of panel doors
• Accommodates up to four padlocks and can be used with hasps
• Extra-secure cable hold with cam wheels and a sturdy, ribbed cable channel
• Each cable end is reinforced with a metal ferrule

Specifications

• Width: 3.2 in
• Length: 6.24 in
• Depth: 1.67 in
• Cable Diameter: 0.19 in
• Cable Length: 3.281 ft
• Panel Size: 12 - 36 in
• Material: ABS, Stainless Steel
• Cable Material: Steel
• Color: Red
• Service Temperature Range °F: -40 °F - 212 °F
• Minimum Service Temperature °F: -40 °F
• Maximum Service Temperature °F: 212 °F
•  Application: Lockout Tagout
• Maximum Number of Padlocks: 4
• Mounting Type: Under Panel Screws
• Risk Type: Electrical Risk
• Maximum Shackle Diameter: 0.252 in
